• (1) 4-passenger rear bench seat
• (2) 12-volt pwr points-inc: (1) instrument panel, (1) located rear of driver
• (2) 3-passenger intermediate bench seats
• 12-passenger seating
• Black cowl side trim panels
• Black plastic stepwell pads
• Courtesy light switches for all doors
• Day/night rearview mirror
• Dual A-pillar grab handles
• Front inboard armrest
• Rear cargo light
• Tilt steering wheel
• Tire pressure monitoring system (TPMS)

• 115 amp alternator
• 4-wheel anti-lock braking system (ABS)
• 5000# capacity twin I-beam front/6340# capacity semi-floating rear axles
• 72 amp/hr (650 CCA) maintenance-free battery
• AdvanceTrac w/RSC
• Brake/shift interlock
• Electronic throttle control
• Handling pkg-inc: front stabilizer bar, front/rear HD shock absorbers
• Pwr 4-wheel disc brakes
• Pwr steering
• Rear-wheel drive

• 4-wheel anti-lock braking system (ABS)
• AdvanceTrac w/RSC
• Brake/shift interlock
• Driver & front passenger 2nd generation airbags
• Dual note electric horn
• Front height adjustable 3-point safety belts
• Rear 3-point shoulder/lap safety belts in all positions

5.4L EFI V8 ENGINE

• (STD)

• Rear Wheel Drive
• Power Steering
• 4-Wheel Disc Brakes
• Wheel Covers
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Intermittent Wipers
• Third Passenger Door
• Fourth Passenger Door
• AM/FM Stereo
• Bucket Seats
• Adjustable Steering Wheel
• Tire Pressure Monitor
• A/C
• Power Outlet
• Driver Air Bag
• Passenger Air Bag
• Rear Wheel Drive
• Power Steering
• 4-Wheel Disc Brakes
• Wheel Covers
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Intermittent Wipers
• Third Passenger Door
• Fourth Passenger Door
• AM/FM Stereo
• Bucket Seats
• Adjustable Steering Wheel
• Tire Pressure Monitor
• A/C
• Power Outlet
• Driver Air Bag
• Passenger Air Bag

• Vehicle
• Rear Door Type: Panel
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 115
• Maximum Alternator Watts: 1725
• Cooling System
• Total Cooling System Capacity (qts): 28.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 5545
• Curb Weight - Front (lbs): 3189
• Curb Weight - Rear (lbs): 2665
• Gross Vehicle Weight Rating Cap (lbs): - TBD -
• Gross Combined Wt Rating (lbs): 13000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 670
• Suspension
• Suspension Type - Front: Single channel
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 3900
• Spring Capacity - Rear (lbs): 5545
• Axle Type - Front: Twin-I-Beam
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4600
• Axle Capacity - Rear (lbs): 6340
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.00
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.03 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 12.9 x - TBD -
• Tires
• Front Tire Order Code: T37
• Rear Tire Order Code: T37
• Spare Tire Order Code: T37
• Front Tire Size: LT225/75R16E
• Rear Tire Size: LT225/75R16E
• Spare Tire Size: LT225/75R16E
• Front Tire Capacity (lbs): 2680
• Rear Tire Capacity (lbs): 2680
• Spare Tire Capacity (lbs): 2680
• Revolutions/Mile @ 45 mph - Front: 709
• Revolutions/Mile @ 45 mph - Rear: 709
• Revolutions/Mile @ 45 mph - Spare: 709
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Turning Diameter - Curb to Curb (ft): 48.0
• Turning Diameter - Wall to Wall (ft): 50.2
• Frame
• Frame Type: 1 Channel Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35
• Fuel Tank Location: Midship
• Doors
• Side Door Type: Hinged
• Exterior Dimensions
• Wheelbase (in): 138.0
• Length, Overall w/rear bumper (in): 212.0
• Width, Max w/o mirrors (in): 70.1
• Height, Overall (in): 83.4
• Overhang, Front (in): 35.1
• Overhang, Rear w/bumper (in): 43.9
• Ground to Top of Load Floor (in): 30.7
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Rear Door Opening Height (in): 46.8
• Rear Door Opening Width (in): 54.4
• Side Door Opening Height (in): 48.3
• Side Door Opening Width (in): 47.1
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 120.6
• Cargo Area Length @ Floor to Seat 2 (in): 87.4
• Cargo Area Length @ Floor to Seat 3 (in): 53.9
• Cargo Area Length @ Floor to Seat 4 (in): 20.8
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.1
• Cargo Box (Area) Height (in): 53.1
• Cargo Volume to Seat 1 (ft³): 236.5
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): - TBD -
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 42.5
• Front Leg Room (in): 40.0
• Front Shoulder Room (in): 68.1
• Front Hip Room (in): 65.6
• Second Head Room (in): 40.2
• Second Leg Room (in): 38.9
• Second Shoulder Room (in): 70.5
• Second Hip Room (in): 66.5
• Third Head Room (in): 40.1
• Third Leg Room (in): 41.4
• Third Shoulder Room (in): 71.2
• Third Hip Room (in): 66.9
• Fourth Head Room (in): 38.9
• Fourth Leg Room (in): 40.6
• Fourth Shoulder Room (in): 69.4
• Fourth Hip Room (in): 66.1
• Summary

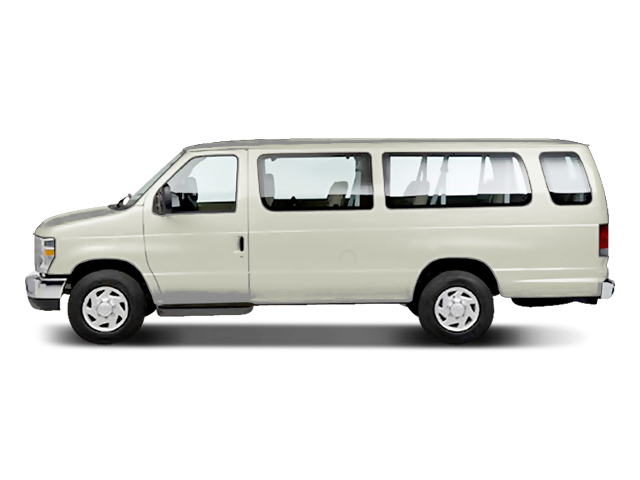

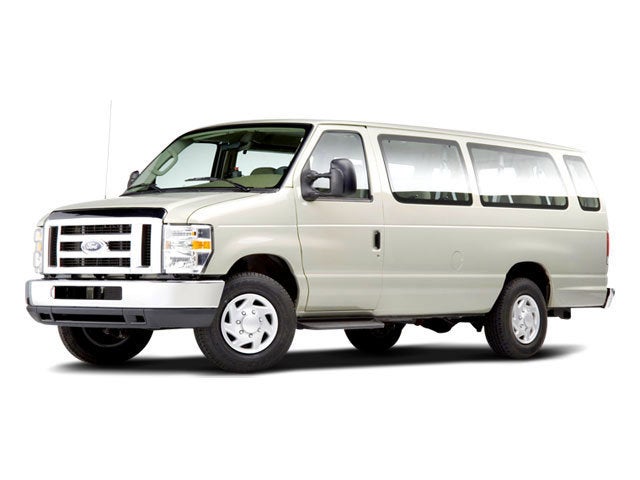

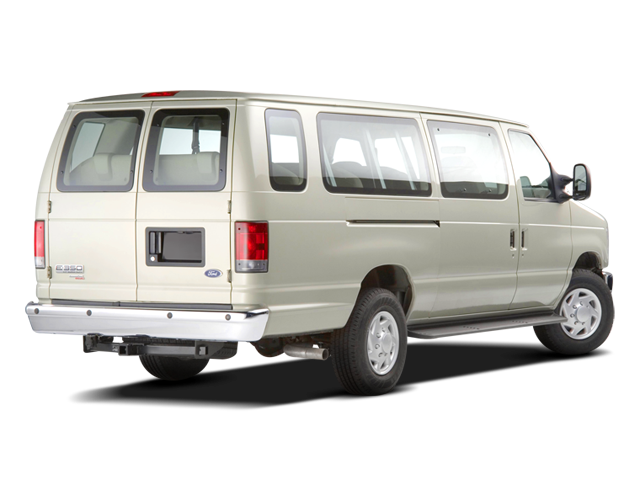

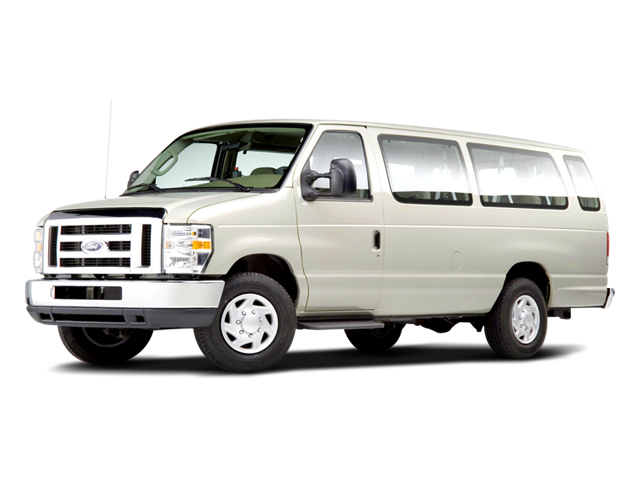

• Vehicle Name: Ford Econoline Wagon
• Body Style: HD Reg Passenger Van
• Body Code: 138.0" WB
